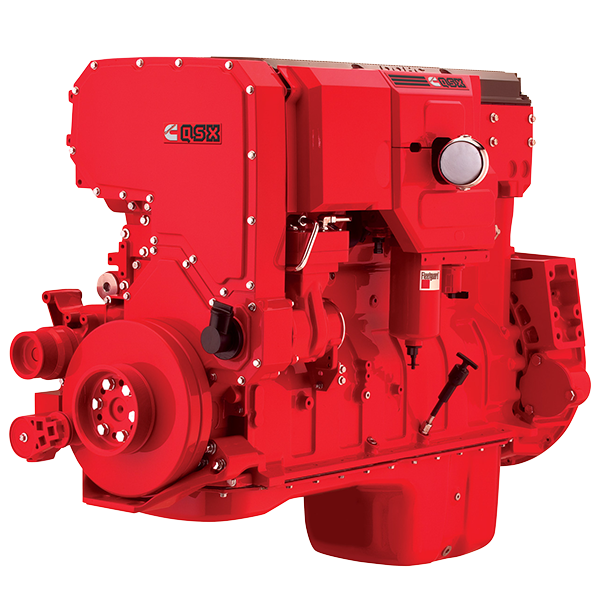

QSX Cummins engine
Advertised Horsepower | 350-635 hp | 261-474 kW | ||
Peak Torque | 1182-2050 lb-ft | 1603-2779 N•m | ||
Cylinders | 6 | |||
Oil System Capacity | 48 U.S. qt | 45.42 liters | ||
Length | 56.8 in | 1443 mm | ||
Width | 40.6 in | 1032 mm | ||
Height | 51.1 in | 1298 mm | ||
Weight (dry) | 3,200 lb | 1,451 kg | ||
Engine Model | Advertised hp (kW) @ rpm | Peak hp (kW) @ rpm | Peak Torque lb-ft (N•m) @ rpm | |
QSX 635* | 635 (474) @ 2100 | 680 (507) @ 1900 | 2050 (2780) @ 1400 | |
QSX 600* | 600 (447) @ 2100 | 660 (492) @ 1900 | 2050 (2780) @ 1400 | |
QSX 600* | 600 (447) @ 1800 | 625 (466) @ 1700 | 2050 (2780) @ 1400 | |
QSX 560* | 560 (418) @ 1800 | 568 (424) @ 1700 | 2050 (2780) @ 1400 | |
QSX 540 | 540 (403) @ 2100 | 557 (415) @ 1900 | 1730 (2346) @ 1400 | |
QSX 530 | 530 (395) @ 1800 | 530 (395) @ 1800 | 1706 (2313) @ 1400 | |
QSX 525 | 525 (391) @ 2100 | 578 (431) @ 1800 | 1800 (2441) @ 1400 | |
QSX 510** | 510 (380) @ 1800 | 531 (396) @ 1700 | 1743 (2364) @ 1400 | |
QSX 500 | 500 (373) @ 2100 | 550 (410) @ 1800 | 1743 (2364) @ 1400 | |
QSX 475 | 475 (354) @ 2100 | 534 (398) @ 1700 | 1743 (2364) @ 1400 | |
QSX 460** | 460 (343) @ 1800 | 465 (347) @ 1600 | 1743 (2364) @ 1400 | |
QSX 450 | 450 (336) @ 2100 | 450 (336) @ 2100 | 1690 (2292) @ 1400 | |
QSX 435 | 435 (324) @ 2100 | 465 (347) @ 1800 | 1469 (1992) @ 1400 | |
QSX 425 | 425 (317) @ 2100 | 468 (349) @ 1800 | 1435 (1946) @ 1400 | |
QSX 400 | 400 (298) @ 2100 | 440 (328) @ 1800 | 1452 (1969) @ 1400 | |
QSX 380 | 380 (283) @ 2100 | 380 (283) @ 2100 | 1163 (1577) @ 1400 | |
QSX 360 | 360 (268) @ 2100 | 396 (295) @ 1800 | 1215 (1648) @ 1400 | |
QSX 350 | 350 (261) @ 2100 | 350 (261) @ 2100 | 1182 (1603) @ 1400 |
